Stability tests
These tests cover a very wide range of water depths, some of the tests are in the range of DELOS experiments.
|
|
|

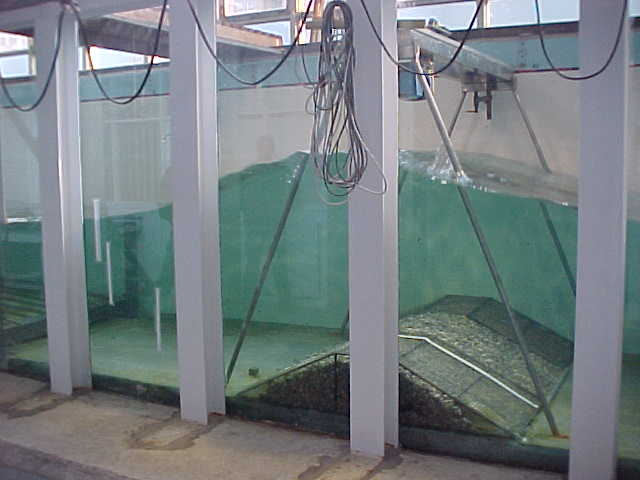

| Model in the wave flume | Profiling the model with the laser profiler | |
|
|
|
| Computer screen with the laser profiler data | Wave tests with submerged structure (non breaking waves) | |
|
|
|
| Waves breaking over the submerged structure | Wave tests with emerged structure | |
|
||
| Damage after a tests |
Flow tests
These tests have been carried out to obtain the pressure distribution around a pipe covered with a rubble mound structure. The water depth is higher than the range we will use for DELOS experiments, but these tests will provide data point for the calibration of the VOF model we will use in DELOS. Photographs show some of the techniques and tools we will use in DELOS tests.
|
 |
|

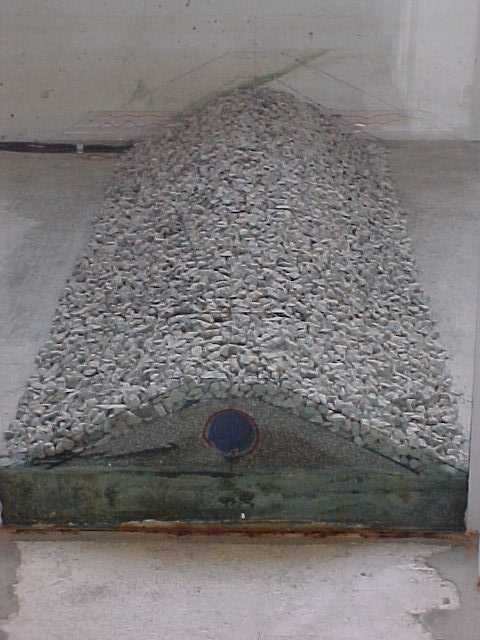

| Pipe installation | Core construction | |
 |
 |
|
| Core installed | Secondary layer installation | |
 |
 |
|
| Secondary layer installed | Armour layer installation | |
 |
 |
|
| Model terminated | Flow measurements with waves |
| Last update:13/04/04 |
